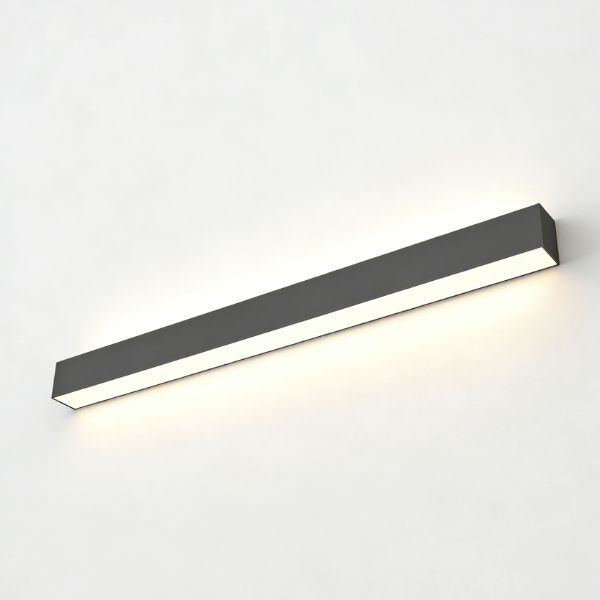

2.75″ LED linear pendant light
Fornax Office LED linear pendant light
Fornax 2.75″ Aperture series Office LED linear pendant light to have beautiful lines and modern appearance and can be used single or as a continuous run, vertical linear lighting system, compact aluminum structure, screwless die-cast aluminum cover end.
Durable, anti-fading and scratch-resistant electrostatic high-temperature powder coating, matt black, matt white, silver-gray, sandy white or other custom colors are available. High lumen output LED light source, excellent color temperature consistency, no blue light hazard, adjustable color temperature can help you reduce inventory risk, one SKU to meet various needs.
Durable polycarbonate frosted lens minimizes glare, and optional upward indirect lighting enhances the visual brightness and comfort of the entire space
Multiple installation methods: easy installation design, can be used for suspension, surface, recessed, and embedded installation.
Different light environment requirements, lamps can be equipped with dimming function to create a better light atmosphere. Our LED linear pendant light standard comes with 0-10V dimming, optional Triac dimming for specific requirements.
Versality LED Suspended linear fixture
Construction:
- Multiple Lengths: Choose from 1′, 2’, 3′, 4′, 5′, 6′ or 8′ fixtures to suit your space planning needs—from compact niches to long runs across larger ceilings.
- Sleek Finishes: Available in classic black or white, these timeless finishes complement a wide range of modern and minimalist interiors.
- Flexible Mounting Options: Easily adaptable for suspended, surface, recessed, or wall mounting—giving you maximum flexibility during installation while maintaining visual continuity.
- Soft, Even Illumination: Equipped with a PC frosted diffuser (can be opened from the front side for easier maintenance for continuous runs) as standard, delivering glare-free and uniform light. (Additional lens options available for customized visual comfort or light control.)
- Selectable Light Distribution: Featuring direct/indirect switchable output, allowing users to tailor the lighting to their space—uplight for ambient glow or downlight for focused task lighting.
- Integrated Plug-in Connectors: Designed for clean, uninterrupted lines and easy continuous runs. These tool-free plug-in connectors allow for fast installations and refined linear compositions
- L-shaped (90°), T, X, V, and Y-junction illuminated connectors are available.
- 4-step wattage selection via onboard dip switches
- Each fixture is equipped with a convenient switch that allows you to select from 4 CCT or 5 CCT
- Take lighting to the next level with integrated RGBCW technology—a powerful combination of Red, Green, Blue, Cool White, and Warm White LEDs in one fixture
Applications:
- Office
- Kitchen
- Exhibition Hall
- Supermarket
- School
- Hotel
- Hospital
- Factory
- Workshops and Industrial workstation
Expectations surpassed led pendant ceiling lights
Multi length
Standardized luminaires are provided in nominal lengths to deliver balanced, full, illumination.
Fornax family architectural fixture is available in lengths of 2’, 3’, 4’, 5′, 6’, and 8’, and can be joined together in seamless runs of any length with the uniform lighting output per foot.

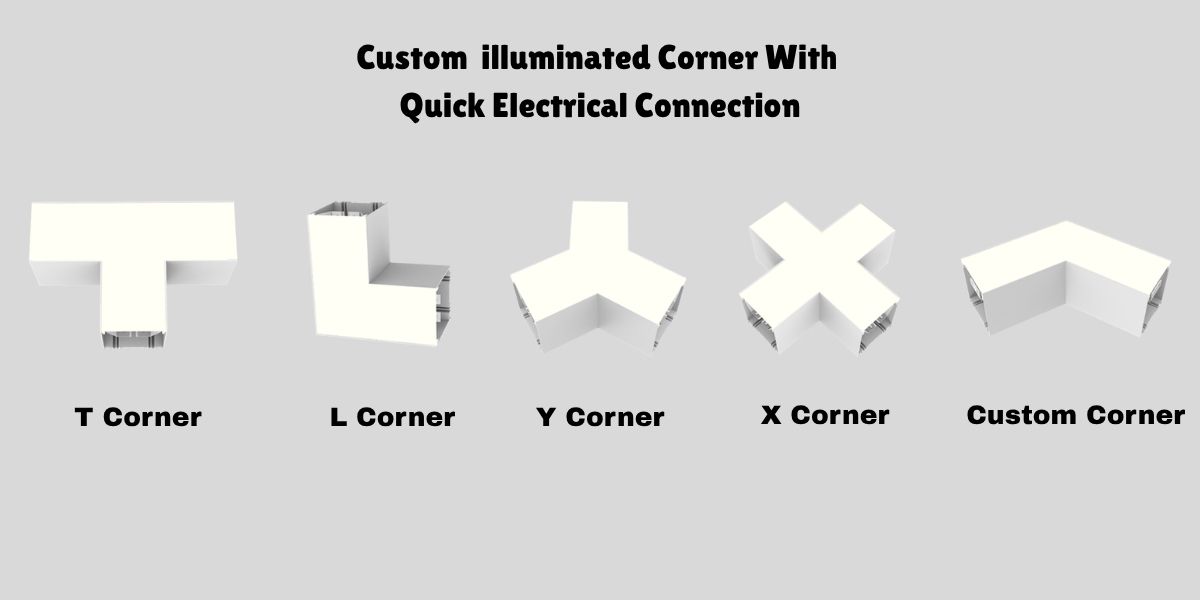

The illuminated joiners makes all designers happy possible
Adapt to architecture with corners, crosses and shapes.
Lighting design fl exibility you can work with for any rooms
Custom Corner
120° Corner
X Corner
L Corner
T Corner
- Wattage: 25-20-15-10W
- Efficacy: 120LPW
- Voltage: 120-277V AC
- CCT: 30K, 35K, 40K, 50K
- CRI: 82
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
- Wattage: 50-40-30-20W
- Efficacy: 120LPW
- Voltage: 120-277V AC
- CCT: 30K, 35K, 40K, 50K
- CRI: 82
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
- Wattage: 76-60-46-30W
- Efficacy: 120LPW
- Voltage: 120-277V AC
- CCT: 30K, 35K, 40K, 50K
- CRI: 82
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
- Wattage: 100-80-60-40W
- Efficacy: 120LPW
- Voltage: 120-277V AC
- CCT: 30K, 35K, 40K, 50K
- CRI: 82
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
One Light, All Mounting Types
Our Architectural Linear LED Fixture is engineered with multiple mounting options, giving lighting designers, contractors, and architects the freedom to implement creative lighting layouts while ensuring easy, efficient installation. Whether you want a bold lighting statement or a subtle embedded design, this fixture adapts seamlessly.
1. Suspended (Cable or Rod)
Ideal for open ceilings and atriums. Adjustable drop height for floating light lines.
2. Surface-Mounted (Ceiling or Wall)
Low-profile, clean installation on drywall, concrete, or wood. Perfect where suspension isn’t practical.
3. Wall-Mounted (Horizontal or Vertical)
Functional or decorative lighting on walls. Great for corridors, entrances, or design accents.
4. Recessed (Trimmed or Trimless)
Seamless integration into ceilings or walls.
-
T-grid: For standard drop ceilings
-
Trimmed: Framed look in drywall
-
Trimless: Minimalist, flush finish for high-end interiors
Drop Lens
Recessed Lens
Grille Lens
Wall Washer
Optic Lens
Advanced RGBCW Tunable Lighting with Wireless Control
Our RGBCW (Red, Green, Blue, Cool White) lighting technology expands the capability of traditional RGB color mixing by integrating a dedicated Cool White channel. This means the 2.75 Architectural Light not only produces vibrant, fully saturated color scenes, but also delivers refined white light suitable for task, ambient, or accent illumination in commercial and architectural spaces.
🌈 Why RGBCW Matters
-
True Color + Functional Lighting in One Fixture
Unlike standard RGB-only systems, RGBCW offers a separate cool white channel for accurate white light (functional and comfortable), while still delivering rich RGB color effects. -
Smooth and Balanced Color Transitions
Integrated tuning provides seamless shifts between pure color scenes and neutral white output for balanced illumination throughout diverse use cases. -
Design Flexibility for Professional Spaces
Ideal for environments that require both dynamic lighting atmospheres and reliable white illumination — such as offices, galleries, retail spaces, hospitality areas, and corporate interiors.
Key RGBCW Benefits for This Architectural Light
| Feature | Description |
|---|---|
| Rich Color Flexibility | Produce dynamic RGB color effects for branded lighting schemes, seasonal themes, or wayfinding layers. |
| Refined Cool White Output | Control functional white light (with excellent color rendering) independent of color scenes. |
| Unified Control System Ready | Seamless integration with DMX/RDM, DALI, or centralized lighting control platforms. |
| Enhanced Dimming Performance | Smooth dimming across both color and white channels without flickering or abrupt changes. |
Get the dropped ceiling led linear pendant light price
Frequently Asked Questions (FAQ)
Q: What makes the 2.75″ width ideal for architectural specification?
A: The 2.75-inch aperture strikes a perfect balance: it’s narrow enough to maintain a modern, minimalist aesthetic (fitting neatly into ceiling systems) but wide enough to house high-output LEDs and optics. This ensures a clean visual line without sacrificing the powerful, uniform light levels required for commercial spaces.
Q: Can this fixture create continuous, seamless light lines around corners?
A: Yes, absolutely. This fixture is designed with integrated plug-in connectors and a wide variety of illuminated joiners, including L-shaped (90°), T, X, V, and Y-junctions. This allows designers to create uninterrupted, continuous light patterns that follow the perimeter of a room or form custom geometric shapes.
Q: What is the benefit of the selectable Direct/Indirect lighting distribution?
A: This feature provides ultimate design flexibility. Direct/Indirect switchable output allows you to customize the lighting effect: use Direct (downlight) for focused task illumination, use Indirect (uplight) for soft ambient ceiling illumination, or use a combination for balanced, low-glare visual comfort, which is ideal for offices and schools.
Q: What mounting options are available for this linear fixture?
A: This fixture is incredibly versatile and supports four primary installation types to fit nearly any architectural plan:
-
Suspended (via cable or rod)
-
Surface-Mounted (ceiling or wall)
-
Recessed (Trimmed or Trimless, for T-grid or drywall)
-
Embedded (Wall-Mounted, horizontal or vertical)
Q: Does the fixture support universal North American commercial voltage?
A: Yes. The fixture is equipped with a high-quality driver that accepts 120–277V AC input, making it compatible with standard commercial electrical systems across the US and Canada.
Q: Is the light output selectable or adjustable?
A: Yes, both the Wattage and Color Temperature (CCT) are selectable. Each fixture comes equipped with internal DIP switches, allowing users to select from 4 CCT options (e.g., 30K/35K/40K/50K) and 4 different wattage outputs. This flexibility helps contractors reduce inventory risk while meeting diverse lighting specifications on a single project.
Q: Does this linear light support modern dimming control?
A: Yes. The fixture comes standard with 0–10V DC dimming, which is the most widely adopted dimming protocol for commercial lighting control systems in North America. Triac dimming is also available as an optional specification for certain project requirements.
Q: Is the fixture maintenance-friendly, especially for long continuous runs?
A: Yes. The PC frosted diffuser is designed to be opened easily from the front side, allowing electricians to access the internal components for maintenance or repair without having to remove the entire fixture run from the ceiling.
