Architectural LED Troffer Light
High-Efficacy Recessed Fixture for Modern Commercial Spaces
The Brandon Lighting Architectural LED Troffer Light features a sleek, modern design defined by its unique Angled Flat Lens. This design moves beyond the traditional troffer aesthetics, offering a clean, minimalistic look while maximizing photometric performance.
The optimized angle of the lens is engineered to deliver high efficacy and an incredibly uniform distribution of light across the illuminated plane. This combination of high efficiency, low profile, and precision light control makes it the perfect solution for modern corporate offices, retail environments, and educational facilities that require both aesthetic sophistication and demanding energy performance.
Construction:
Certification:
🏢 Ideal High-Performance Applications
This Architectural LED Troffer Light is built to meet the rigorous demands of specification-grade projects:
-
Corporate: Executive Offices, Tech Offices, and collaborative workspaces.
-
Retail: Showrooms and high-end commercial spaces needing focused illumination.
-
Educational: Classrooms and labs requiring uniform, efficient lighting.
-
Commercial: Lobbies, Public Spaces, and areas where modern design is key.

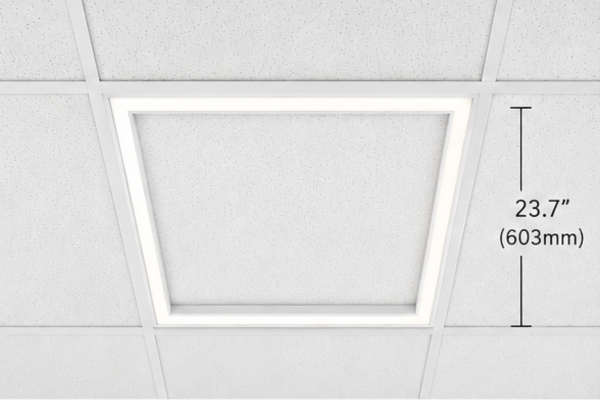

2X2 Electrical:
- Dimension: 23 6/8×23 6/8×2 3/8″ | 605*605*61mm
- Wattage: 20-25-30-35W Selectable
- Efficacy: 120-125LPW
- Voltage: 120-277V AC
- CCT: 3500K, 4000K, 5000K
- CRI: 80
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
1X4 Electrical:
- Dimension: 11 6/8×47 6/8×2 3/8″ | 605*605*61mm
- Wattage: 20-25-30-35W Selectable
- Efficacy: 120-125LPW
- Voltage: 120-277V AC
- CCT: 3500K, 4000K, 5000K
- CRI: 80
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver

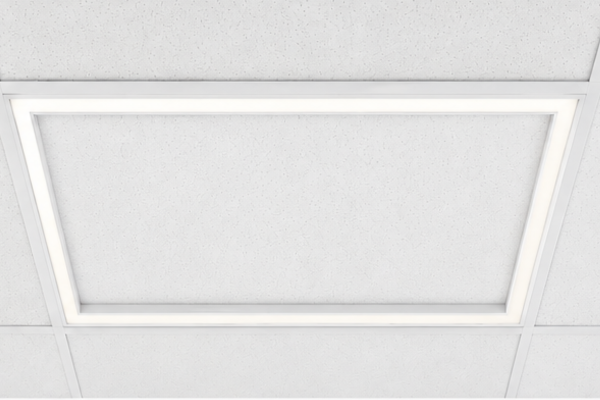

2X4 Electrical:
- Dimension: 47 6/8×23 6/8×2 3/8″ | 1210*605*61mm
- Wattage: 35-40-45-50W Selectable
- Efficacy: 120-125LPW
- Voltage: 120-277V AC
- CCT: 3500K, 4000K, 5000K
- CRI: 80
- PF: >0.92
- THD: <15
- Dimming: 0-10V DC
- Frequency:50/60Hz
- Class P LED driver
⭐ Core Features & Design Advantages
Our commitment to architectural-grade performance is detailed in every aspect of our series:
| Feature | Technical Benefit for Specifiers |
| Angled Flat Lens Design | Provides maximum photometric efficiency and a smooth, even wash of light, creating a clean, modern aesthetic. |
| High Efficacy & Performance | Utilizes premium components to achieve exceptional Lumens per Watt (LPW), ensuring maximum energy savings and eligibility for high-tier DLC Premium rebates. |
| Recessed Linear Aesthetic | The clean lines and angular profile integrate perfectly into suspended ceilings, offering a superior look to standard flat panels. |
| Seamless Recessed Fit | Available in standard 2×4 LED Troffer and 2×2 LED Troffer sizes for quick, tool-less lay-in installation into standard T-bar grids. |
| Shallow Plenum Ready | Low-profile housing accommodates installations with restricted ceiling space, making it perfect for shallow plenum applications and retrofits. |
| Integrated Dimming | Standard 0-10V continuous dimming allows for seamless integration with advanced daylight harvesting and building management systems. |
WAITING IS COSTLY… CONTACT US NOW!
❓ Frequently Asked Questions (FAQ)
This section targets technical long-tail search queries and common questions from facility managers and contractors.
Q1: Why choose an Angled Flat Lens Architectural LED Troffer over a standard flat panel?
The Angled Flat Lens design enhances light distribution and visual interest, elevating the fixture’s aesthetic appeal beyond a standard flat panel. While maintaining a low profile, the angled lens helps optimize the light output, offering a more sophisticated look and often better performance and efficiency than simple flat panels.
Q2: Does this fixture require a deep plenum for installation?
No. This fixture features a shallow depth housing to accommodate restricted ceiling cavities. This makes it a versatile solution for both new construction and LED retrofit projects in buildings with limited plenum space.
Q3: What is the primary benefit of the Angled Flat Lens in performance?
The specific angle of the lens is designed to maximize light efficiency (LPW) while ensuring the light is delivered smoothly and uniformly. This design targets high efficacy ratings, making it a great choice for projects focused on meeting stringent energy codes and achieving DLC Premium status.
Q4: What Color Rendering Index (CRI) options are available for this fixture?
The standard configuration offers a high-quality CRI of 80+, which is excellent for general commercial use. However, for applications like high-end retail or art spaces where color accuracy is critical, a CRI of 90+ is available upon request to ensure objects are rendered in their true color.
Q5: What are the installation options for this Architectural LED Troffer Light?
This fixture is primarily designed for lay-in installation into standard T-bar or grid ceilings (15/16″ or 9/16″ grids). For seismic areas or drop-ceiling installations where suspension is required, integrated attachment points are provided for use with fixture-support wires.
Q6: What is the warranty period for this product?
We stand behind the quality of our specification-grade fixtures. The standard warranty for the driver and LED components in this Architectural LED Troffer Light is 5 years. Extended warranty options are available for large-scale projects; please inquire with our sales team.
Q7: How is this fixture cleaned and maintained?
Maintenance is minimal. The outer lens can be safely wiped clean with a non-abrasive, damp cloth and mild detergent. Since the fixture utilizes long-life LED technology (L70 > 50,000 hours), there is no required lamp replacement, significantly reducing long-term maintenance costs.
Q8: Is this fixture compliant with California Title 24 requirements?
Yes. When paired with the standard 0-10V dimming driver and integrated with compliant controls (daylight sensors, occupancy sensors), this high-efficacy fixture is designed to meet the rigorous energy efficiency requirements of California Title 24 and other major regional energy codes.
