Spec-Grade Recessed Linear Lighting Supplier

Maximize design flexibility and energy efficiency with the Brandon Lighting Apex Series—the gold standard in modern illumination. As a premier China-based factory and a trusted UL-certified supplier with 14 years of deep-rooted expertise, we provide high-performance recessed linear light fixtures specifically engineered to exceed the rigorous technical demands of North American and European commercial markets.

Our Apex Series is designed to be more than just a light source; it is a structural element. From minimalist 2-inch linear apertures that offer a sleek, unobtrusive profile to bold 6-inch fixtures designed to anchor large public spaces lighting, our specification-grade solutions deliver high-fidelity illumination with zero compromise.

recessed mud-in luminaire T-bar recessed luminaire

seam 2 led recessed light

Key Features & Architectural Benefits

  • Four Aperture Widths: Choose from 2″, 2.75″, 4″, or 6″ to match your architectural scale.

  • Modular Lengths: Available in 2ft, 4ft, 6ft, and 8ft individual units or joinable configurations.

  • Maintenance-Friendly Design: Features a removable and field-serviceable lens, allowing easy access to internal LED modules and drivers without damaging the ceiling.

  • High Efficacy: Delivering an impressive 1,050 – 1,200 lumens per foot, optimized for energy efficiency.

  • Advanced Control: Options for Static White, Tunable White, and Switchable Lumens/Color Temperature to reduce inventory SKUs for distributors.

2. Two Professional Recessed Solutions

Recessed Linear Lighting

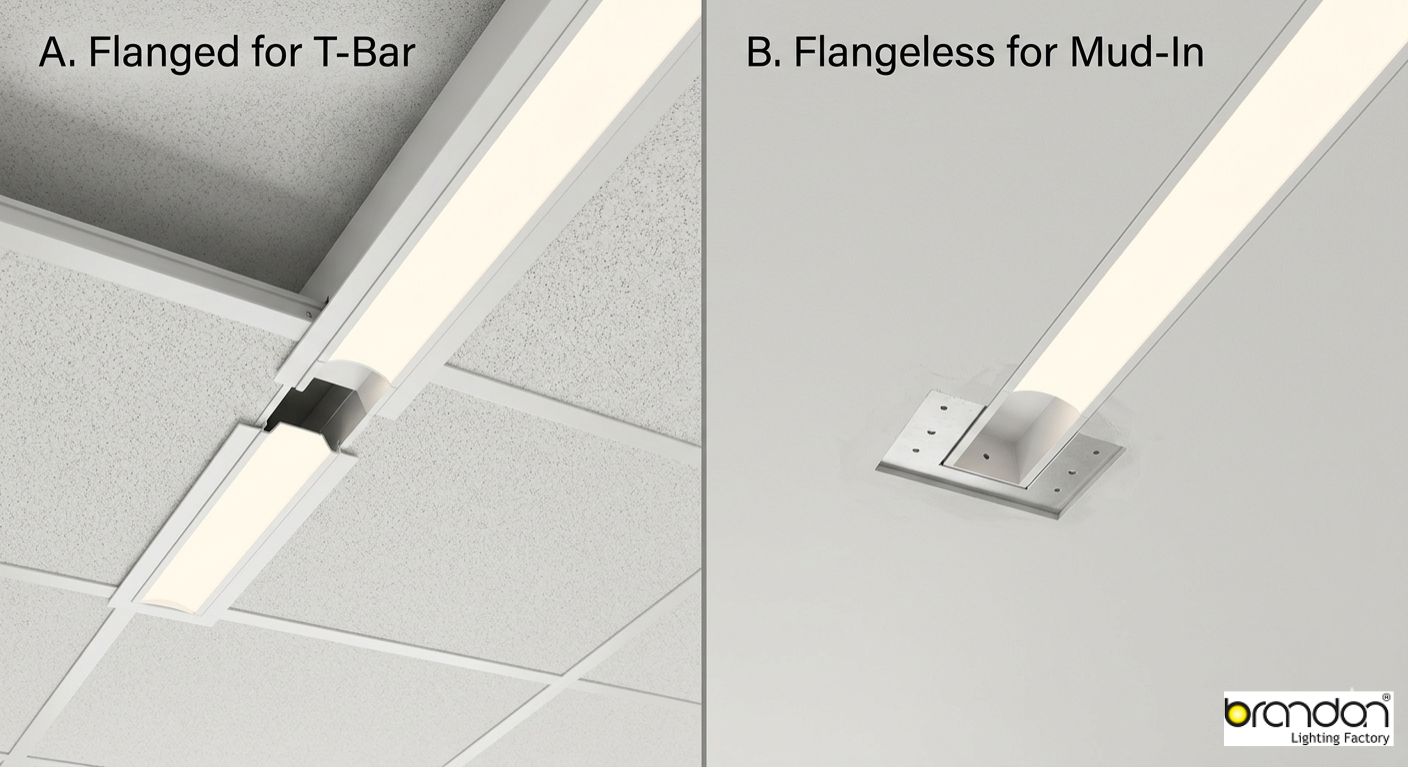

We offer two distinct mounting methods to ensure a flush to surface finish in any ceiling type:

A. Flanged for T-Bar (Grid Ceilings)

The ideal solution for commercial office T-grid ceilings. The ultra-thin flange rests securely on the grid, providing a fast, professional “lay-in” installation.

B. Flangeless for Mud-In (Drywall/Plaster)

Designed for high-end architectural lighting projects. This flangeless solution allows the fixture to be plastered directly into the drywall (mud-in), creating a minimalist slot linear series look where the light emerges seamlessly from the structure.

3. Technical Specifications

Parameter Specification
Manufacturer/Supplier Brandon Lighting (Direct China Factory)
Certifications UL / cUL Listed (E-file available), DLC Premium, CE
Aperture Widths 2″, 2.75″, 4″, 6″
Fixture Height 3.35″ (85mm)
Lumen Output 1,050 – 1,200 Lumens per foot
Input Voltage 120-277VAC (Universal) / 347V (Canada Specific)
CCT (Color Temp) Selectable 3000K, 3500K, 4000K, 5000K or Tunable White
CRI 80+ Ra (Standard) / 90+ Ra (Optional)
Dimming & Controls 0-10V Dimming (1%-100%), DALI, Smart Controller Compatible
Continuous Run Seamless Connectors for light-leak-free joining
Warranty 5-Year Factory Limited Warranty

4. Factory Advantage: Your UL-Certified Partner in China

As a factory with 14 years of experience in commercial linear lighting, Brandon Lighting is more than just a supplier; we are your strategic OEM partner.

  • UL & cUL Compliance: Every fixture is built in our China factory following strict UL safety standards, ensuring smooth project approval in the USA and Canada.

  • B2B Customization: We specialize in specification-grade customizations, including custom lengths, unique finishes (Black/Silver/RAL), and emergency battery backup integration.

  • Direct Logistics: Based in Zhongshan, we offer direct factory-to-warehouse shipping, providing the most competitive pricing for high-volume indoor lighting projects.

5. Guide to Linear Recessed Lighting

What is Architectural Linear Recessed Lighting?

It is a lighting method where narrow recessed fixtures are embedded into the ceiling or walls. Unlike traditional 2×4 troffers, linear lighting creates a sense of movement and “clean lines,” making it the preferred choice for modern office, retail, and healthcare designs.

Common Applications

  • Commercial Offices: Use recessed office lighting to create geometric patterns or define hallways.
  • Retail & Task Lighting: High-output linear slots provide excellent ambient lighting while doubling as task lighting for displays.
  • Specialty Areas: Low-profile designs are perfect for under-cabinet lighting, toe kick lighting, or perimeter wall washing.

office recessed lighting linear

How to Select the Right Width?

  • 2″ – 2.75″: Perfect for minimalist designs and narrow corridors.

  • 4″ – 6″: Best for high-ceiling public spaces lighting where high lumens per watt and a bolder visual presence are required.

6. Frequently Asked Questions (FAQ)

Q: Are you a direct factory or a trading company?

A: We are a direct China factory specializing in LED lights and linear extrusions. We manage the entire production cycle from aluminum cutting to UL-certified assembly.

Q: Can these fixtures be connected for 20ft or 50ft runs?

A: Yes. Our seamless connectors and internal alignment joiners allow for virtually unlimited continuous runs without light gaps.

Q: Do you provide IES files for lighting simulations?

A: Absolutely. As a specification-grade supplier, we provide full photometric data (IES/LDT files) to help designers calculate lumens per watt and light distribution for their projects.
