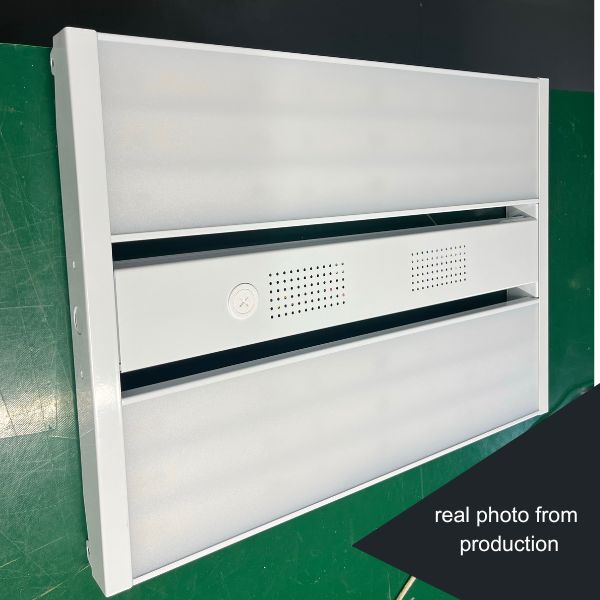

2FT Linear LED High Bay Lights & Fixtures

Industrial-Grade 2FT LED Linear High Bay Solutions for North America

Upgrade your commercial and industrial spaces with our ultra-efficient 2ft led linear high bay fixtures. Engineered to meet the rigorous energy-saving mandates of the United States and Canada, these compact 2 ft linear high bay lights deliver powerful, uniform illumination.

Built with a heavy-duty steel housing and a high-reflectance baked white enamel finish, our 2-foot series optimizes light distribution while cutting utility costs. Boasting an outstanding system luminous efficacy of 150 lm/W to 180 lm/W, these luminaires are the premier choice for modern warehouses, manufacturing plants, logistics centers, commercial retail aisles, and gymnasiums.

Field-Adjustable Flexibility: Wattage Selectable Drivers

To drastically reduce inventory overhead and SKU complexity for electrical distributors, our premium 2 foot led high bay lights are engineered with advanced wattage selectable technology. Instead of stocking multiple static fixtures, a single 2FT unit allows electrical contractors to toggle between customizable power settings on-site to match exact lumen requirements.

Flexible Power Output Optimization & Competitive Pricing

• 60W / 80W / 100W Selectable Model: Perfect for balanced mid-height ceiling layouts (15 to 20 feet), this highly versatile high bay light 100w class platform is available at a highly competitive factory-direct unit cost of USD $19.80.

• 100W / 120W / 150W Selectable Model: For higher ceilings demanding intense illumination and strict compliance, our high-output 150w led highbay class platform provides maximum foot-candles across high-density storage aisles for a factory unit cost of USD $29.80

Precision Retrofitting

Our field-adjustable 2FT models provide the ideal engineered alternative to replace legacy, power-draining 250W to 400W metal halides or multi-lamp T8/T5HO fluorescent fixtures, yielding an immediate energy reduction of up to 70% without sacrificing crisp visibility.

Strict Technical Compliance: UL & DLC V6.0 Premium

Navigating government energy codes and maximizing local utility rebates requires verifiable third-party certification. Every 2ft led industrial high bay light we manufacture is fully compliant with strict North American safety and performance benchmarks.

UL Listed for Damp Locations

Certified under rigorous safety standards, our fixtures maintain consistent, spark-free performance in challenging ambient temperatures ranging from -4°F to 131°F (-20°C to 40°C). The steel end caps feature high flame-retardant performance to ensure reliable operation under continuous heavy-duty industrial cycles.

DLC V6.0 Premium Qualified

Operating within the elite 150-180 lm/W efficacy spectrum, our linear bays feature DLC V6.0 Premium listing. This qualification ensures that engineering specifiers, lighting designers, and project managers lock in the highest possible tier of financial incentives and utility rebates from programs like DesignLights Consortium, BC Hydro, Efficiency Vermont, and ComEd.

High Bay LED Lights 5000K Daylight for High-Clarity Environments

Visual precision directly influences workspace productivity and facility safety. Our led linear high bay 5000k architectural configurations offer a crisp, bright daylight color temperature that eliminates dark spots in high-density storage aisles.

Advanced Photometrics & Visual Comfort

Featuring a robust CRI >82 and a wide, uniform beam angle (H99° / V115.9°), our high bay led lights 5000k fixtures distribute glare-free illumination evenly across floor surfaces. To accommodate specific regional or architectural requirements, customizable single or selectable CCT configurations spanning 3000K, 4000K, and 5000K are readily available.

Contractor-First Engineering: Easy Installation & Smart Control Accessories

Labor hours make or break a project’s profitability. Our 2FT linear series features an installer-centric structural design optimized for fast-paced commercial deployments.

• Tool-less Entry & Easy Installation: Designed with standard wiring knockouts on the back and ends, alongside integrated quick-disconnect terminal blocks, electrical contractors can complete wiring swiftly and easily without complex tools. The architecture seamlessly supports suspended chain mounting or secure surface mounted kits to fit diverse roof structures.

• Plug-and-Play Easy Installation Sensors: Boost facility automation with our optional add-on PIR or microwave motion sensors. These smart controls offer 0-10V step-dimming capabilities, daylight harvesting, and wireless remote control adjustments up to mounting heights of 50 feet—perfect for achieving Title 24 energy code compliance.

• Code-Compliant Battery Backup Systems: Ensure uninterrupted operations during sudden power failures with our factory-integrated or field-installable emergency battery backups (EM kits). Delivering a reliable 10W constant power output for a minimum of 1.5 hours ($\ge$90 minutes), they fully meet National Electrical Code (NEC) and National Building Code of Canada (NBCC) life-safety requirements.

Technical Specifications & Ordering Matrix

🛠️ High-Yield Contractor Application Scenarios

Our 2FT linear series is purpose-built to solve real-world installation, code compliance, and performance challenges across major commercial projects:

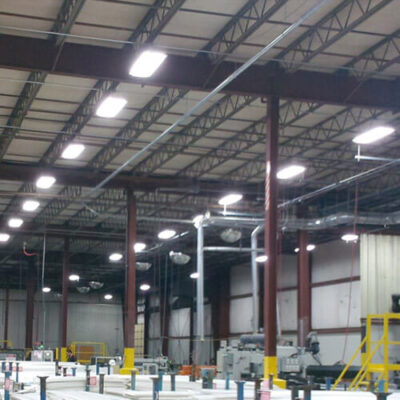

Warehouse Aisle & High-Racking Retrofits

• The Contractor Challenge: Achieving uniform foot-candles at the floor level without wasting light on the tops of tall storage racks, while keeping fixture counts low.

• Our Solution: The 2FT design pairs high-output lumens with a tailored beam spread (H99° / V115.9°). Contractors can position these fixtures directly over aisles to maximize vertical lux levels. Upgrading legacy 400W metal halides to our 150W setting delivers instant 70% energy savings and crisp visibility for forklift operators.

Commercial Retail & Supermarket Build-outs

• The Contractor Challenge: Providing high color rendering (CRI) and bright daylight illumination to make products pop, while satisfying strict regional energy codes like California’s Title 24.

• Our Solution: Operating as a high-clarity led linear high bay 5000k system with a CRI >82, this fixture accurately displays product packaging in retail environments. Contractors can install our snap-on PIR motion sensors with daylight harvesting to satisfy local energy savings codes out of the box.

Sports Facilities & School Gymnasiums

• The Contractor Challenge: Installing high-ceiling fixtures that can withstand impacts from basketballs/soccer balls while providing glare-free lighting for athletes.

• Our Solution: Built with a rigid steel chassis, our 2FT high bays easily integrate with our optional protective Wire Guards to prevent impact damage. The frosted optical lens configuration diffuses light perfectly to eliminate harsh direct glare during overhead plays.

Cold Storage & Industrial Logistics Hubs

• The Contractor Challenge: Finding a fixture that maintains reliable lumen output, fast startups, and component structural integrity in cold or damp ambient environments.

• Our Solution: UL Listed for Damp Locations, this premium platform functions continuously in extreme ambient operating temperatures ranging from -4°F to 131°F (-20°C to 40°C). The fully enclosed, isolated Class II/P drivers ensure instant-on, flicker-free performance even in unconditioned loading docks or refrigerated zones.

•

Get a Bulk Submittal Quote & Custom IES Files

Partner directly with a proven B2B commercial lighting OEM manufacturer. Contact our North American architectural engineering team today at sales@brandon-lighting.com for volume wholesale pricing, custom regional specification variations, or immediate project layout submittal assistance.

🙋‍♂️ Frequently Asked Questions (FAQ) — Project Specifications & Procurement

Q1: How does a 2FT compact linear high bay replace traditional metal halide or fluorescent fixtures in large warehouses?

• Answer: Our 2ft led linear high bay is a high-density lumen package engineered specifically for high-efficiency retrofits. A single 2FT fixture running at 100W or 150W delivers up to 19,500 lumens with an elite efficacy of 150-180 lm/W. This allows electrical contractors to directly replace energy-draining 250W–400W Metal Halide (MH) systems or 4-lamp/6-lamp T8 or T5HO fluorescent fixtures. It reduces energy consumption by up to 70% while drastically improving foot-candle uniformity across tight warehouse aisles and logistics racks.

Q2: Why is the DLC V6.0 Premium certification critical for US and Canadian commercial projects?

• Answer: DLC V6.0 Premium classification indicates that our fixtures meet the highest performance and system efficacy tier established by the DesignLights Consortium. For lighting companies and builders, this certification is the key to locking in maximum mid-stream or post-purchase financial rebates from utilities (such as ComEd, National Grid, PG&E, BC Hydro, and Efficiency Vermont). Specifying DLC V6.0 Premium products ensures a significantly lower Total Cost of Ownership (TCO) and a faster Return on Investment (ROI) for property owners.

Q3: How do Wattage Selectable drivers benefit commercial builders and wholesale distributors?

• Answer: Our wattage selectable technology introduces maximum on-site flexibility while cutting down distributor inventory risks. Instead of purchasing and managing separate SKUs for different ceiling heights, contractors can use a single 2FT model and toggle the built-in dip switches to select the ideal wattage (e.g., matching a high bay light 100w for a 15-foot ceiling, or stepping up to a 150w led highbay for a 25-foot ceiling). This effectively eliminates project delays caused by layout changes or unexpected foot-candle requirements during final inspections.

Q4: Can these 2FT linear high bays be integrated with smart controls for Title 24 or ASHRAE 90.1 compliance?

• Answer: Yes. Every fixture supports native 0-10V dimming and features a dedicated port for easy installation sensors. Contractors can snap on plug-and-play PIR or microwave motion sensors to implement advanced multi-level dimming, bi-level occupancy sensing, and daylight harvesting. These automated controls are vital for meeting stringent energy codes like California’s Title 24 or ASHRAE 90.1 in modern logistics centers and retail supermarkets.

Q5: What type of emergency lighting solutions do you provide for large retail facilities or supermarkets?

• Answer: To comply with National Electrical Code (NEC) and National Building Code of Canada (NBCC) life-safety requirements, we offer factory-installed or field-installable emergency battery backup kits (EM kits). In the event of a sudden power outage, the emergency module automatically activates, providing a continuous 10W constant power output for a minimum of 90 minutes (or 1.5 hours) to guarantee safe, visible egress paths for customers and personnel.

Q6: Are these fixtures durable enough for continuous operations in high-traffic logistics hubs or industrial plants?

• Answer: Absolutely. Built with a rigid, heavy-duty steel housing and protected by a high-reflectance, rust-resistant baked white enamel finish, our 2-foot line is engineered for demanding commercial spaces. Certified as UL Listed for Damp Locations, the fixtures operate seamlessly within ambient temperature ranges from -4°F up to 131°F (-20°C to 50°C), making them ideal for non-conditioned warehouses, multi-shift manufacturing plants, and active distribution centers.
