2×2 LED Grid Frame Light Factory Supplier

Redefine your ceiling aesthetics with our modern 2×2 LED grid frame light, a next-generation solution designed for T-bar and drop ceiling systems. Featuring a sleek edge-lit architectural design, this innovative fixture delivers a minimalist, high-end look that goes beyond traditional LED flat panels. Unlike standard recessed panels, the grid frame structure integrates seamlessly into the ceiling grid, allowing existing ceiling tiles to remain visible or be customized for a clean, contemporary finish. Ideal for commercial lighting applications such as offices, retail stores, showrooms, and modern lobbies, this ultra-slim (0.63″) fixture combines visual sophistication with high-performance illumination, making it a perfect fluorescent troffer replacement for projects focused on both design and energy efficiency.

Contractor-Focused Field Flexibility

Maximize your project efficiency with a fixture designed for customizable illumination on the fly:

• 5 CCT Selectable: Field-tune your space with five color temperature options ranging from 3000K to 6500K, ensuring the perfect ambiance for any interior lighting project.

• 3-Wattage Selectable: Adjust the lumen output on-site with three power settings: 27W, 35W, and 40W.

• High Efficiency: Delivering up to 130 LPW, this energy-efficient frame ensures maximum brightness (up to 5000 lumens) while minimizing power consumption.

• Universal Voltage: Supports a standard 120-277V voltage range, making it ideal for diverse commercial applications.

• Precision Control: Equipped with 0-10V dimming for smooth integration with occupancy sensors and energy-saving building controls.

Technical Specifications

Modern Aesthetics & Performance

• Clean Lines: The modern design provides a “hollow” center look, offering a fresh alternative to standard LED flat panels.

• Uniform Light: High-performance edge-lit technology ensures even light distribution without hot spots or glare.

• Easy Installation: Simply drop into existing grid ceilings; the lightweight frame reduces labor time and requires no heavy mounting hardware.

Frequently Asked Questions: 2×2 LED Grid Frame Lights

1. What is a 2×2 LED Grid Frame Light?

The Evolution of Troffer Lighting: The grid frame light represents the next generation of architectural troffers. It moves away from bulky metal boxes toward a minimalist “hollow” frame design that sits directly on the T-bar grid.

Grid Frame vs. Standard Flat Panels: Unlike standard flat panels that cover the entire ceiling tile space, a grid frame light is an ultra-slim perimeter light. This allows you to place a standard ceiling tile back into the center, creating a unique “floating” architectural effect.

Modern Interior Advantages: These fixtures provide a high-end, contemporary look that traditional lighting cannot match. They reduce visual clutter on the ceiling while maintaining a professional, clean-lined atmosphere.

2. Key Features and Performance Benefits

Field-Adjustable Wattage and CCT: This fixture is a “one-SKU” solution. Contractors can toggle between 27W, 35W, and 40W and select from 5 CCT options (3000K to 6500K) to meet specific project needs on-site.

0-10V Dimmable Functionality: Each frame comes equipped with a 0-10V dimmable driver, allowing for smooth integration with daylight sensors and automated building control systems.

Energy Efficiency Standards: Achieving up to 130 LPW, these lights deliver up to 5000 lumens while significantly lowering energy consumption compared to older fluorescent systems.

3. Technical Specifications to Consider

Lumens, CRI, and Voltage: These frames support a universal 120-277V range and feature a CRI of 80+, ensuring colors appear vibrant and natural in a commercial setting.

Safety Certifications: Our grid frames are designed to meet DLC Premium and ETL standards, ensuring they qualify for top-tier energy rebates and meet strict North American safety codes.

Construction Quality: Built with a slim 0.63″ profile, the aluminum housing provides excellent heat dissipation and features an IP20 rating for protected indoor use.

4. Versatile Installation and Mounting Options

Seamless T-Grid Integration: The frame is precision-engineered to drop directly into standard 23.75″ x 23.75″ T-grid openings, fitting flush with the existing ceiling structure.

Mounting Flexibility: While primarily used in drop ceilings, optional kits allow for surface mounting on hard ceilings or suspension hanging for a more industrial, modern look.

Retrofit Solutions: Because they are lightweight and utilize a simple driver-to-frame connection, they are the fastest way to retrofit an entire office from old fluorescent tubes to modern LED technology.

5. Primary Application Scenarios

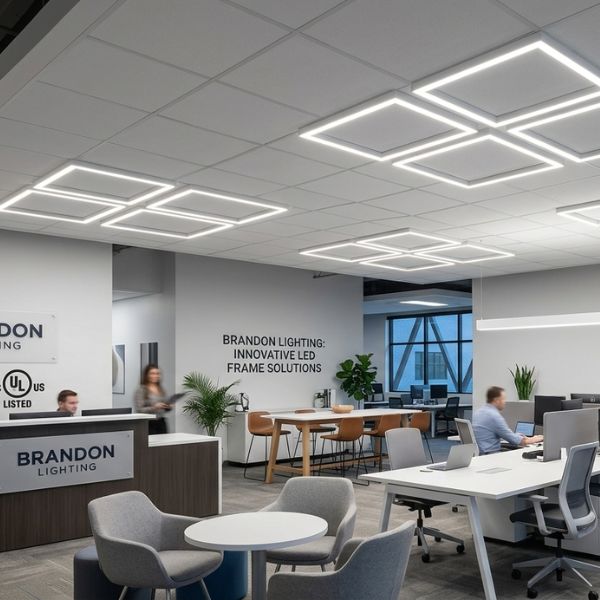

Corporate Offices: Enhances workplace productivity by providing shadow-free, glare-reduced lighting in a sleek form factor.

Retail and Showrooms: The edge-lit technology creates a stylish environment that draws attention to merchandise without the distracting look of traditional fixtures.

Education and Healthcare: Reliable, flicker-free performance makes these frames ideal for classrooms and medical suites where consistent light quality is mandatory.

6. Comparison of 2×2 Lighting Designs

Grid Frame vs. Center Basket: Center basket troffers provide volumetric light but occupy plenum space. Grid frames are virtually flat, making them ideal for buildings with limited space above the ceiling.

Back-Lit vs. Edge-Lit: These frames utilize edge-lit technology, which allows for an incredibly thin profile while ensuring the light is distributed evenly without any visible “hot spots.”

Frames vs. Flat Panels: While flat panels are functional, architectural frames offer a design-forward “designer look” that increases the perceived value of the property.
