Architectural IP66 Linear Lighting FAQ

Q1: What is an IP66 Architectural Linear Light?

An IP66 Architectural Linear Light is a high-performance, elongated lighting fixture engineered specifically to provide continuous, high-output linear illumination while maintaining superior protection against harsh environmental elements. Moving beyond standard indoor commercial fixtures, an architectural linear luminaire features a heavy-duty extruded housing shell and a fully gasketted seal profile. The term “architectural” implies a clean, minimalist aesthetic that effortlessly accentuates the spatial geometry of premium commercial buildings, facades, and high-exposure structural pathways.

Q2: Why is an IP66 waterproof rating critical for outdoor architectural use?

The IP66 (Ingress Protection) rating guarantees absolute internal safety for rugged exterior applications. The first digit “6” denotes total protection against dust, dirt, and airborne particulate penetration. The second digit “6” certifies that the fixture housing can withstand high-pressure water jets and heavy downpours from any direction without allowing moisture into the driver chamber or LED board. For outdoor commercial systems, this level of sealing prevents internal condensation, early corrosion, and electrical short circuits caused by intense weather.

Key Features and Technical Specifications

Q3: What durability and material standards should wet-location linear lights meet?

Specification-grade fixtures must utilize high-tensile, architectural-grade aluminum or reinforced metal alloys post-painted with high-durability, anti-corrosive powder finishes. Internal sealing must feature premium, non-degrading silicone or EPDM gaskets to maintain a secure water barrier over time. All exposed components and mounting hardware must be engineered from rust-resistant stainless steel to combat freezing winter conditions and coastal salt-spray exposure.

Q4: How do advanced optical performance and light distribution controls impact linear fixtures?

Advanced optics convert raw LED output into highly functional visual illumination. High-quality linear fixtures utilize specialized high-transmittance frosted diffusers or precise internal reflectors to deliver smooth, uniform illumination without visible hot spots or glare. Professional configurations offer distinct directional controls, enabling a single architectural line to create narrow-beam grazing paths, uniform wide-angle wall washing, or balanced asymmetrical downlighting.

Q5: What are the expected energy efficiency and lifespan profiles of these fixtures?

Modern commercial linear systems are engineered for peak system efficacy, delivering high lumen output (such as 105 lm/W to 120 lm/W). This performance yields substantial utility savings for continuous, high-wattage lighting footprints compared to old-style fluorescent or metal halide systems. Furthermore, standard commercial LED platforms offer an extended operational lifespan rated at L70 > 50,000 hours, minimizing structural maintenance cycles and ongoing labor expenses over years of service.

Types of Architectural Linear Lighting Solutions

Q6: What is the functional difference between Direct and Indirect exterior linear fixtures?

• Direct Linear Fixtures (Downlighting): Focus the entire lumen output downward toward the target ground pathway or surface, maximizing localized task visibility and pedestrian safety.

• Indirect Linear Fixtures (Uplighting): Direct illumination upward toward the ceiling or building overhang, reflecting soft, glare-free ambient light back down into the space to create a premium, floating architectural effect on the structure.

• Direct/Indirect Systems: Combine both distributions simultaneously to deliver efficient downlighting while beautifully accentuating vertical architectural facades.

Q7: When should I specify Recessed vs. Surface/Wall-Mounted linear lights?

• Recessed Linear Lights: Installed completely flush with the surrounding ceiling or wall paneling. They are ideal for creating clean perimeter slots and modern geometric accents where the fixture housing must remain entirely invisible.

• Surface or Wall-Mounted Linear Lights: Attached directly to the finished structural concrete, brick, or canopy face. They provide a bold, physical architectural accent line and are heavily favored for exterior facades and project walls where recessed depth is restricted.

Q8: How are Perimeter and Slot linear systems used in commercial projects?

Perimeter and slot linear layouts are specialized configurations designed to interface cleanly with building wall boundaries. A perimeter slot format embeds a continuous line of light deep into the ceiling-to-wall intersection. This specialized tracking reflects illumination smoothly down the vertical wall surface, expanding the perceived volume of breezeways, premium hospitality entryways, and upscale corporate transit hubs.

Primary Application Scenarios

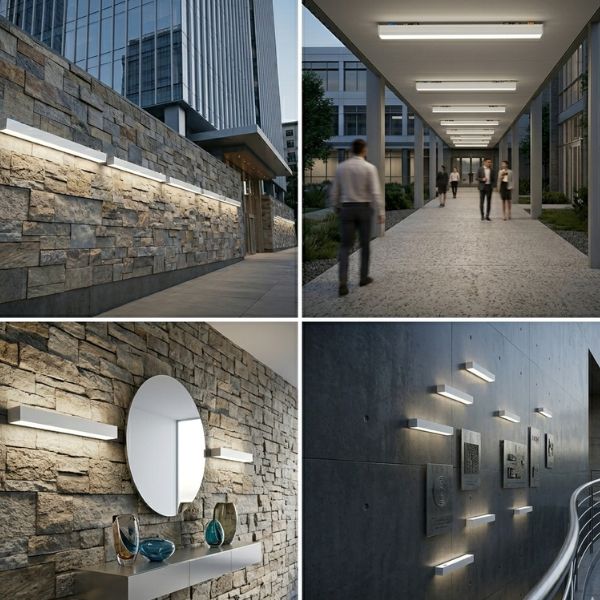

Q9: How are linear lights utilized in exterior facade and landscape lighting?

On exterior building facades, heavy-duty linear fixtures are deployed horizontally to execute crisp wall-grazing layouts, adding visual depth by catching the texture of stone or concrete facades. In landscapes, these fixtures trace architectural perimeter borders, emphasize structural retaining walls, and deliver soft, directional safety illumination along public plazas and premium courtyard gathering zones.

Q10: Why are these linear luminaires ideal for commercial wet locations and parking garages?

Indoor parking structures, transit hubs, and industrial loading bays subject lighting components to constant automotive exhaust, airborne dampness, and regular water spray cleaning. An IP66 wet location fixture keeps all sensitive electrical internal components isolated from these aggressive contaminants, ensuring non-flickering operation, consistent light output, and steady illumination compliance across high-traffic zones.

Q11: How do linear systems improve public infrastructure and walkways?

Public transit hubs, open-air pedestrian stairs, and covered walkways require durable, high-visibility lighting to ensure general public safety. Rugged linear fixtures deliver continuous, unbroken light footprints that erase deep pockets of shadow along pedestrian corridors, while their heavy-duty structural bodies offer superior resistance against high-vibration public transit traffic and extreme outdoor weather fluctuations.

How to Choose and Compare Linear Lighting Products

Q12: How should I evaluate technical specifications and mounting configurations?

Begin by verifying that the structural scale (such as a 4-inch aperture profile) and continuous run capabilities line up cleanly with your building’s architectural layout. Review the field-selectable wattage parameters to ensure the lumen package can adapt to specific installation heights. Finally, evaluate the mounting hardware configurations to confirm the fixture supports easy universal installation over standard utility junction boxes or integrates seamlessly with structural multi-position channels.

Q13: What specific certifications and compliance standards should I check for?

For commercial peace of mind and building code alignment, verify that the luminaire carries official UL / cUL Listed for Damp/Wet Locations status for both the US and Canadian commercial markets. Additionally, look for standard RoHS compliance regarding hazardous materials. In specialized regional markets, checking for high efficiency metrics ensures the hardware meets strict state-mandated energy criteria.

Q14: How can I analyze product reliability and manufacturer capability?

When assessing long-term reliability for major multi-run commercial bids, verify the manufacturer’s established history in B2B trade. Look for comprehensive testing capabilities including provided IES photometric tracking files and verifiable thermal validation data. Choosing an OEM supplier with dual-origin manufacturing operations (such as integrated production lines in both China and Thailand) provides reliable structural quality, steady project lead times, and flexible tariff protection for massive infrastructure projects.
