72″ Architectural LED Linear System Supplier

Precision Engineering from a Professional Manufacturer

The Brandon Lighting 72-inch Linear System is a heavy-duty, specification-grade luminaire designed for environments that demand both style and substance. Featuring a refined 2.75″ aperture and a 3.35″ housing height, this fixture provides a bold yet minimalist architectural statement.

Unlike standard shop lights, our 72″ linear pendant is engineered with advanced Aperture Optics, ensuring a uniform, glare-free light distribution that enhances productivity and visual comfort in high-end offices, conference rooms, and commercial galleries.

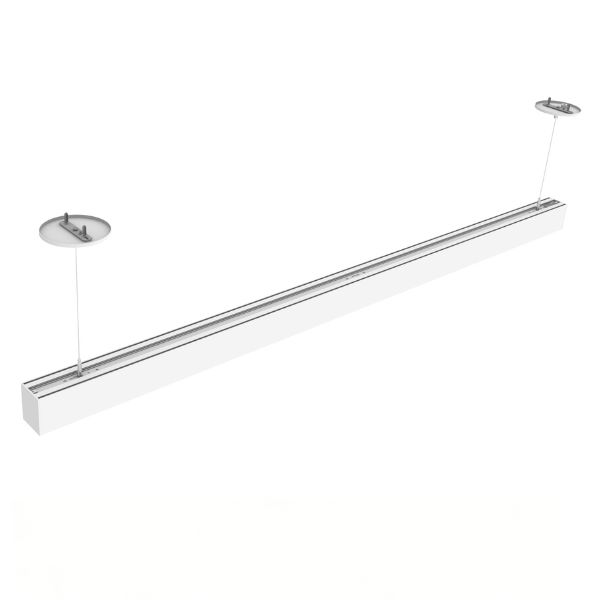

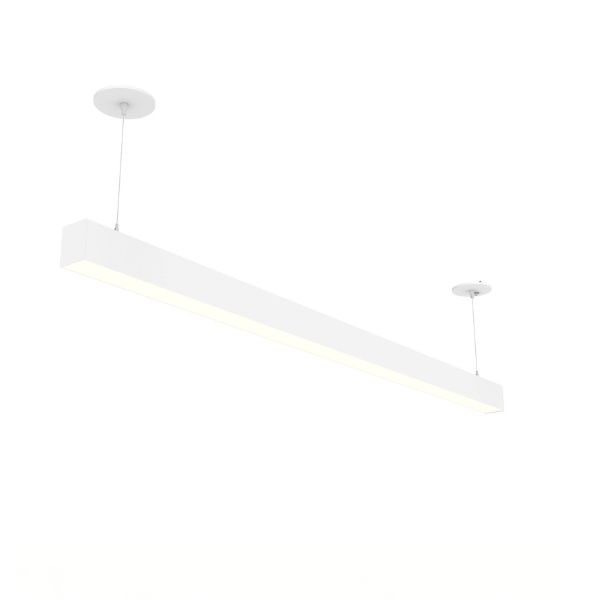

72-inch linear light fixtures by Brandon Light installed in a continuous run for a high-ceiling corporate office, featuring seamless architectural design and UL-listed performance. A spacious retail showroom with 30ft high ceilings featuring suspended 72-inch linear light segments arranged in geometric patterns, delivering high-lumen output and superior glare reduction.

Factory-Direct Reliability & Customization

As a direct manufacturer with a 15-year legacy in LED linear technology, Brandon Lighting ensures every fixture meets rigorous quality standards. Our factory utilizes high-grade extruded aluminum to provide superior thermal management, ensuring that this 6ft system maintains its structural integrity and luminous efficacy over time.

  • Dual-Origin Supply Chain: As a strategic lighting supplier, we operate production facilities in both China and Thailand. This dual-origin capability allows us to provide flexible shipping solutions and help our partners mitigate trade complexities without compromising on quality.

  • Tailored Specifications: We understand that every project has unique requirements. From custom finishes to specific lumen packages, our manufacturing team is equipped to provide private labeling and bespoke modifications to fit your design vision.

Technical Specifications

Feature Detailed Specification
Model Number AR811CLM06016BVKD1A
Length 72″ /6ft
Aperture & Profile 2.75″ Width x 3.35″ Height
Selectable Wattage Multi-Wattage Selectable: 72W Max (Adjustable on-site)
Up/Down Selectable Bidirectional Control: Independent Up & Down light ratio selection
Color Temperature 5-CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K
Luminous Efficacy Up to 125 Lumens Per Watt
CRI 90+ (High Color Rendering Index)
Dimming 0-10V Dimming (Flicker-free, 1% – 100%)
Input Voltage Universal 120-277V (Optional 347V for Canadian projects)
Housing Material Specification-grade Extruded Aluminum
Finish Options Satin Black / Architectural White / Silver (Custom RAL Available)
Lens High-performance Frosted Polycarbonate (Aperture Optics)
Certifications UL & cUL Listed, DLC Premium, Title 24 Compliant
Manufacturing Direct from Factory (China & Thailand dual-origin options)

Key Performance Features

  • Ultimate Control: The 60W selectable power combined with Up/Down selectable functionality means this single fixture can adapt to various mounting heights and lighting layers on-site.

  • Superior Optics: High-efficiency frosted lens provides smooth, pixel-free distribution with a low UGR, ensuring visual comfort.

  • Versatile Mounting: Designed as a flexible supply solution for any space, available in suspended, surface-mount, or recessed configurations.

  • Reduced Installation Cost: As your supplier, we design these 6ft units to cover more area with fewer power drops, saving labor time for electrical contractors.

  • Seamless Runs: Our advanced joining system allows for infinite continuous runs without light leaks.

Customizable Options for Project Requirements

As a flexible manufacturer, Brandon Lighting offers several factory-installed options to meet specific job site needs:

  • Emergency Battery Backup: Integrated 90-minute EM driver.

  • Motion & Daylight Sensors: Factory-integrated PIR or microwave sensors for energy code compliance.

  • Custom Lengths: Available in 2ft, 4ft, 8ft, or custom continuous run segments.

Connect with Our Factory Team

Brandon Lighting is more than just a linear light factory; we are your long-term strategic partner. Whether you are an electrical wholesaler looking for a reliable private label supplier or a contractor needing a bulk quote for a conference room project:

Frequently Asked Questions: 72-Inch Architectural Linear Pendant Lighting

Section 1: Overview & Design Trends

Q: Why choose an oversized 72-inch (6ft) linear pendant for my space? A: A 72-inch fixture provides a continuous, powerful line of light that smaller fixtures can’t match. It offers a cleaner aesthetic by reducing the number of power drops and suspension cables needed for large spaces, creating a sophisticated “architectural” look that anchors the room.

Q: What are the current design trends for large linear lighting in 2026? A: The trend is moving toward minimalist, slim profiles and Human Centric Lighting. Matte black and aged brass remain popular, but integrated smart features and “invisible” light sources (low-glare optics) are the top priorities for modern high-end interiors.

Q: What are the benefits of integrated LED technology over traditional bulbs? A: Integrated LEDs allow for a much slimmer 2.75″ profile and superior thermal management. As a manufacturer, we engineer these systems to last 50,000+ hours while providing perfectly uniform light distribution without the “hot spots” common in bulb-based fixtures.

Section 2: Technical Features & Controls

Q: Can I change the light color after the fixture is installed? A: Yes. Our fixtures feature Field-Adjustable CCT (Color Temperature) options. You can toggle between 3000K (Warm), 4000K (Neutral), and 5000K (Daylight) via a factory-integrated switch to match the mood of your space.

Q: Is the 72-inch linear light dimmable? A: Absolutely. Most of our professional-grade units support 0-10V dimming or TRIAC dimming, allowing smooth light control from 100% down to 1%. They are also compatible with most smart building automation systems.

Q: What is the advantage of “Up/Down” (Direct/Indirect) lighting? A: Direct light (Downlight) provides functional task lighting, while Indirect light (Uplight) bounces off the ceiling to create ambient volume and reduce shadows. Our 60W selectable models allow you to control these ratios independently.

Section 3: Styles & Applications

Q: What finishes and lens types are best for office environments? A: For offices, we recommend a Satin Black or White finish with a Frosted lens. This combination provides a professional look and high-efficiency diffusion. If glare is a concern, ask our factory team about louvered or low-UGR optics.

Q: Is a 6-foot linear light suitable for a home kitchen island? A: Yes, for islands longer than 8 feet, a single 72-inch pendant creates a stunning, proportional centerpiece. It provides edge-to-edge illumination that two smaller pendants often miss.

Q: Where else are these 72-inch fixtures commonly used? A: They are the standard for Executive Conference Rooms, retail galleries, and open-concept commercial lobbies where high lumen output and architectural presence are required.

Section 4: Installation & Maintenance

Q: Can these fixtures be mounted on a sloped ceiling? A: Yes. Our suspension systems use adjustable aircraft cables that can be configured for both flat and sloped/vaulted ceilings.

Q: What are the structural requirements for a 72-inch fixture? A: While aluminum is lightweight, a 6ft fixture requires secure mounting to the ceiling junction box or structural supports. As your supplier, we provide all necessary heavy-duty mounting hardware for standard installations.

Q: How do I clean and maintain high-end metallic finishes? A: Simply use a soft, dry microfiber cloth. Avoid harsh chemicals or abrasives, as these can damage the factory-applied architectural finish.

Section 5: Buyer’s Guide & Sizing

Q: How high should I hang my 72-inch linear pendant? A: For task lighting (like a table or desk), we recommend hanging the bottom of the fixture 30 to 36 inches above the surface. For general ambient lighting in a hallway, maintain at least 80 inches of clearance from the floor.

Q: How do I determine the right brightness (Lumens) for my project? A: For offices, aim for 30-50 foot-candles at the work surface. Our 60W selectable wattage feature is ideal here, as it allows you to adjust the brightness during the final walkthrough to ensure the perfect light level.

Q: What certifications should I look for when sourcing from a factory? A: Always ensure the products are UL or cUL listed for safety and DLC Premium qualified for energy rebates. At Brandon Lighting, these certifications are standard across our architectural linear lines.

Frequently Asked Questions: 3 ft LED Light Fixtures

Q: What are the main benefits of switching to a 3 ft LED light fixture? A: Switching to LED technology offers up to 70% energy savings compared to traditional fluorescent tubes. As a manufacturer, we focus on integrated LED designs that provide 50,000+ hours of maintenance-free light, superior thermal management, and instant-on performance without humming or flickering.

Q: Why choose the 3-foot form factor over standard 4ft or 8ft lights? A: The 36 inch architectural linear light is the ultimate “problem solver.” It is designed for compact spaces like private offices, utility rooms, or staggered modular layouts where larger fixtures won’t fit, providing high-output illumination in a versatile, mid-sized profile.

Q: What is the difference between integrated LED fixtures and LED tube fixtures? A: Integrated fixtures, like our 3ft linear pendant light, have the LEDs built directly into the housing. This allows for a much slimmer 2.75″ profile, better heat dissipation, and more precise Aperture Optics compared to simply placing a tube inside a traditional strip housing.

Q: How bright is a 3 ft LED light fixture? A: Brightness is measured in lumens. Our high-performance 3ft models typically deliver around 4,000 lumens at 30W, easily outperforming a standard 2-lamp fluorescent fixture while using significantly less power.

Q: What do CCT and CRI mean for my lighting project? A: CCT (Color Temperature) determines the “warmth” or “coolness” of the light. Our fixtures are 5-CCT selectable, allowing you to choose from 2700K to 5000K. CRI (Color Rendering Index) measures how accurately colors appear; we provide a CRI of 90+ as a standard for professional architectural applications.

Q: Are these fixtures compatible with both residential and commercial voltages? A: Yes. As a global supplier, our fixtures come with universal drivers supporting 120-277V, making them suitable for everything from home garages to large-scale commercial offices.

Q: What is the difference between a shop light and an architectural linear light? A: While shop lights are often utilitarian for garages, an architectural linear light features a refined aluminum finish, advanced glare-control lenses, and sophisticated mounting options suitable for high-end office and retail environments.

Q: Where are 36 inch architectural linear lights most commonly used? A: They are ideal for Executive Offices (centered over desks), Retail Galleries, Healthcare Exam Rooms, and high-end Kitchen Islands. They provide focused task lighting without the bulk of longer fixtures.

Q: Can I connect multiple 3 ft fixtures together? A: Yes. Our linkable design allows for “Daisy-Chaining” or continuous-run installations. This creates a seamless line of light without dark spots, all powered from a single source.

Q: What mounting options are available from the factory? A: We offer three primary methods: Suspended (using adjustable aircraft cables), Surface Mount (direct to ceiling), and Recessed (flush with the ceiling). As your factory-direct supplier, we include all necessary mounting hardware with every order.

Q: Do I need a professional electrician for installation? A: For commercial projects, we recommend hardwired installation by a professional. However, for utility spaces, we can provide plug-and-play versions with pre-installed power cords for immediate use.

Q: What certifications should I look for when choosing a 3ft LED fixture? A: To ensure safety and eligibility for energy rebates, always choose fixtures that are UL/cUL Listed and DLC Premium 5.1 certified. These are the gold standards for the North American market.

Q: How do I evaluate the build quality of a 3ft linear light? A: Look for extruded aluminum housing (like our 3.35″ height profile) rather than thin sheet metal or plastic. Aluminum provides the necessary structural rigidity and heat sinking required for a long-lasting LED lifespan.

Q: What kind of warranty does Brandon Lighting provide? A: As a dedicated manufacturer, we back our professional-grade 3ft fixtures with a robust 5-year factory warranty, covering the LEDs and the driver system to ensure your project stays illuminated for years to come.
