Commercial Circular Pendant LED Lights — AXIS Halo Series

Specification-Grade Architectural Round Ring Pendants with Dual-Beam Up/Down Ratio Control & Field-Adjustable Smart Technology

• Engineering Edge: 4-Wattage Selectable | 4-CCT Color Selectable | 120-347V Universal Voltage | Uplight/Downlight Ratio Adjustable
• Certifications: UL/cUL Listed for US & Canada | DLC Premium Certified Platform for Maximum Commercial Energy Rebates
• Supply Chain Security: 15+ Years OEM/ODM Manufacturing Experience

1. What is a Circular Pendant LED Light?

Definition & Modern Design Trends

A circular pendant LED light (often referred to as a halo-style or round ring pendant) is a geometric, modern pendant lighting luminaire engineered to deliver both visual punch and high-efficacy ambient illumination. Moving away from traditional fluorescent alternatives and bulky square troffers, contemporary office design heavily embraces the slim, low-profile aesthetics of circular LED rings. It transforms structural illumination into a fluid architectural feature.

Dual-Beam Distribution: Uplight vs. Downlight

Unlike standard point-source downlights, Brandon’s premium circular series acts as a sophisticated direct/indirect luminaire. It features a dual-beam distribution profile, utilizing an advanced optical array to project light simultaneously downward toward task surfaces and upward to wash the ceiling. Bouncing light off the ceiling eliminates the harsh “cave effect” and provides volumetric fill, creating an open, welcoming environment.

2. Key Benefits and Features of Brandon’s Round Ring Pendants

🛠️ The 4-4-Ratio “One SKU” Contractor Advantage

In the North American B2B market, inventory overhead and unexpected on-site change orders are massive pain points for regional distributors and electrical contractors. The AXIS Series solves this entirely. Each fixture features integrated field-adjustable dip switches, allowing installers to select between 4 Wattage levels, 4 Color Temperatures (CCT), and customize the Uplight/Downlight light distribution ratio right on the job site. One single stock keeping unit (SKU) covers dozens of project configurations.

📐 Product Comparison: 4-4-Ratio Capabilities

• Wattage & Lumen Flexibility: Tune brightness instantly to match exact footcandle requirements.

• 4-CCT Color Selectable: Switch between 3000K (Warm), 3500K (Clean White), 4000K (Neutral White), and 5000K (Daylight) to suit changing interior design styles.

• Ratio Control: Adjust whether the fixture provides a 50:50, 70:30, or 30:70 up/down split to match individual ceiling heights and reflectance values.

3. Technical Specifications & Ordering Matrix

Here is the exact technical configuration data for project submittals and bulk wholesale ordering.

📊 Specification Table (2-Column Architecture)

🔹 Physical & Electrical Specifications

• Voltage Range: 120-347V Universal AC (Ideal for US 277V and Canadian 347V industrial grids)

• Housing Material: Premium powder-coated aluminum with seamless thermal management

• Lens Profiling: High-transmittance opal acrylic lens for completely dot-free, glare-free output

• Mounting System: Fully adjustable aircraft cable mounting kit (suspension wire included)

• Dimming Protocol: 0-10V Smooth Dimming standard (compatible with major commercial control systems)

🔹 Model Matrix & Field-Adjustable Parameters

• FP603RLM04024BVKDXW

  • Dimension: 23.62″ / 600mm Diameter

  • Wattage: 40W – 10W Selectable

  • CCT: 4-CCT Selectable

  • Controls: 120-347V | Up & Down Ratio Selectable

• FP603RLM08036BVKDXW

  • Dimension: 35.43″ / 900mm Diameter

  • Wattage: 80W – 50W Selectable

  • CCT: 4-CCT Selectable

  • Controls: 120-347V | Up & Down Ratio Selectable

• FP603RLM10048BVKDXW

  • Dimension: 47.24″ / 1200mm Diameter

  • Wattage: 100W – 60W Selectable

  • CCT: 4-CCT Selectable

  • Controls: 120-347V | Up & Down Ratio Selectable

4. Primary Commercial Applications

🏢 Corporate Offices & Reception Areas

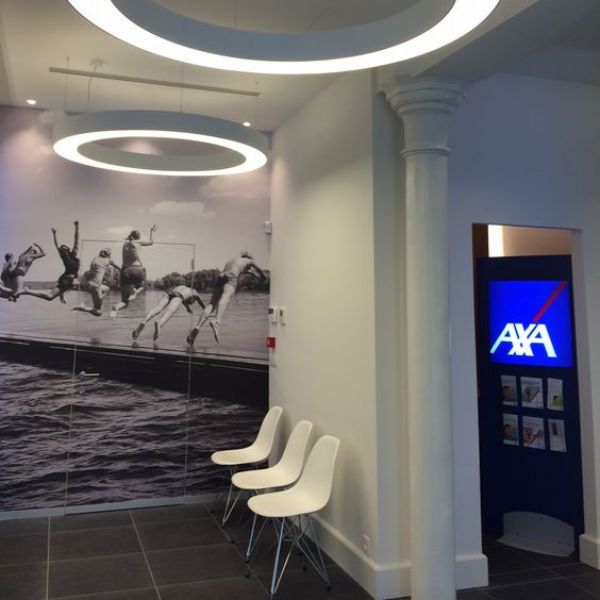

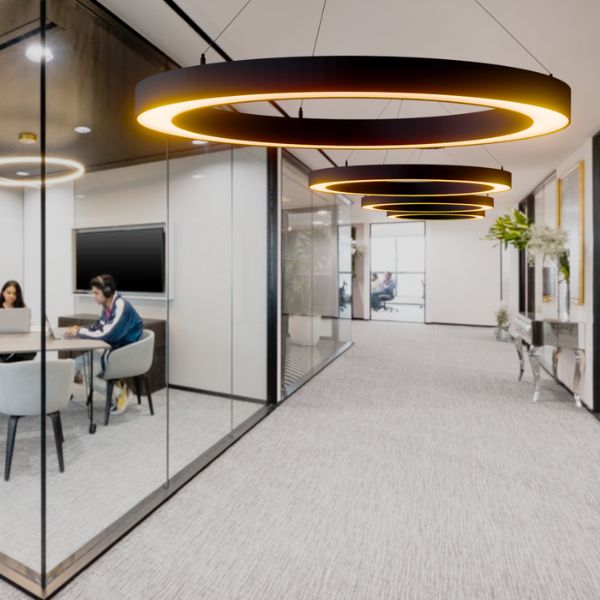

First impressions matter. Placing large-diameter halo-style rings over a building’s reception areas, elevator lobbies, or open conference spaces instantly signals high-end architectural intent. The low-glare opal acrylic lens shields employees’ eyes, boosting workplace productivity and maximizing daily visual comfort over extended work hours.

🛍️ Retail Spaces & Showroom Illumination

Retail layouts require lighting that flatters both products and customers. The crisp color rendering (CRI 80+/90+) of Brandon’s circular pendants elevates metallic finishes and interior textures. Thanks to the 120-347V voltage versatility, these rings integrate directly into complex commercial track grids or high-voltage building systems seamlessly.

5. Installation and Selection Guide

How to Choose the Right Size for Your Space

Selecting the correct ring diameter depends on the volume and footprint of the target architectural environment:

• 23.62″ (600mm): Perfect for individual office fixtures, corridors, small huddle rooms, and accent layers.

• 35.43″ (900mm): The industry standard for standard 10-12 person conference rooms and open workstation pods.

• 47.24″ (1200mm): Designed as a dramatic centerpiece for grand lobbies, high-ceiling showrooms, and expansive open-concept common areas.

Determining the Correct Hanging Height

For optimal diffuse lighting spread, suspended circular fixtures should maintain a minimum distance of 18 to 24 inches below the ceiling plane. This layout allows the upward light distribution component to blend smoothly across the ceiling surface before reflecting down, eliminating localized bright spots or glare.

6. Frequently Asked Questions (FAQ)

Q: What is the benefit of 120-347V universal voltage for North American projects?

A: In the United States and Canada, standard commercial buildings run on 127V or 277V, while Canadian industrial sites frequently utilize 347V grids. A 120-347V universal driver removes the risk of ordering the wrong voltage configuration, allowing contractors to safely deploy the same fixture across various territorial power grids.

Q: Can your factory handle custom metallic or powder-coated finishes for large rollouts?

A: Yes. While our standard architectural stock includes premium matte black and clean white powder-coated aluminum, our OEM/ODM factory lines can provide custom powder coatings or metallic finishes (such as brushed aluminum, satin silver, or specific RAL color matching) tailored to your project submittal requirements.

Value-Engineer Your Lighting Schedule with Brandon

Are you an architectural lighting agent, wholesale distributor, or electrical contractor working on a commercial bid?

Brandon Lighting delivers complete factory support, including IES Files, Photometric Layouts, and Revit/BIM Models to help you lock in and win the project.
