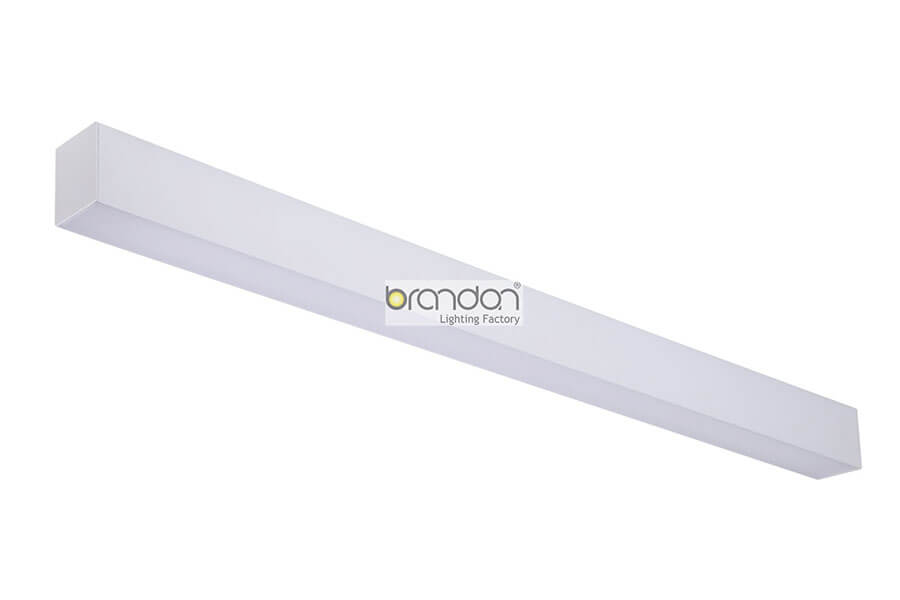

LED LINEAR ARCHITECTURAL
Bandon series architectural linear LED suspension lighting fixtures bring clean lines and clear light to commercial LED or residential lighting interiors. Our sleek, stylish fixtures are highly effective and effcient lighting solutions for hotels, offices, retail outlets, restaurants, and more. Our Linear Lights are a stylish alternative to downlights. Linear lights can create a functional yet relaxing atmosphere and provide an even wash of light within a space.
| Part Number | MX811ELM04014DKKW |
|---|---|
| Dimension | 48×2 3/4×3 1/8″ |
| Wattage | 40W(25W-down/15W-up) |
| Efficacy | 120lm/w |
| Lumens | 4800lm |
| Voltage | AC120-277V/AC347V |
| CCT | 3000K-5500K |
| Lifetime | L70 minimum 50,000 hours |
| Option | Dimmable, Power Cable, Ceiling Canopy |
| Certification | UL, DLC |
| Installation | Aircraft cable Suspended, Row Mounting |
| Warranty | 5 Years |
| Color | White/Black |
Constructed
Specification grade full body housing and end plates are extruded aluminum. All the painted after fabrication following treatment with phosphate rust inhibitor. Finish coating of housing reflecting surfaces with white, high reflectance polyester powder. These light fixtures are designed to save energy and lower maintenance costs.
Electronics
Long-life LED system coupled with electrical driver to deliver optimal performance.LED’s available in 3000,4000 and 5000K with a CRI ≥82. Electronic drivers are available for 120-277V applications.A 0-10V(1-10V)dimming control is available .
Listings
Manufactured and built to UL standards.UL listed to U.S. and Canadian safety standards. Tested in accordance with IESNA LM-79 and LM-80 standard.
Options
Power cord
- Private offices
- Educational Facilities,
- Retail
- Commercial
- Medical Centers
- School classrooms
- General area lighting
